POWER PACKS
These power packs are built in series and can be used in hydraulic and lubrication systems; they are predisposed for mounting of valve blocks, pressure gauge, flow regulators, etc.
Tank dimension is depending on the application and can be sized up to 2000 liters.



code

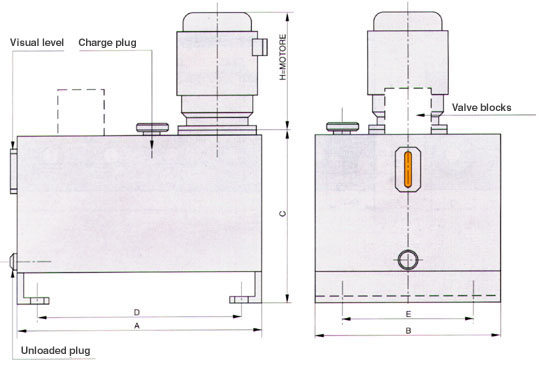

 capacity LT A B C D E
90.120 20 390 275 283 344 215
90.130 30 422 334 318 382 274
90.145 45 506 366 362 462 306
90.160 60 672 366 362 628 306
90.190 90 705 425 454 654 365
90.220 120 750 450 490 704 390
90.250 150 800 500 550 754 440
90.280 180 1000 610 480 954 550
