REVERSIBLE VANE PUMPS FOR OILING

Characteristics :
  • Shaft and vanes in threated and gringed steel
  • Pump body and cover in extruded cast iron
  • Max recommendedRPM: 700
  • Theoretical displacement:4cm3/rev
  • Max working pressure 3 bar

Can be used in both senses of rotation.

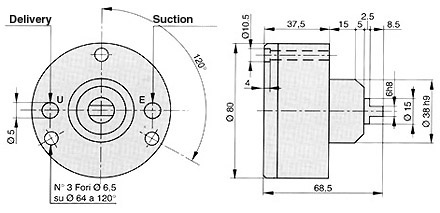

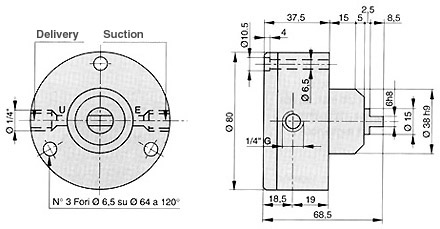

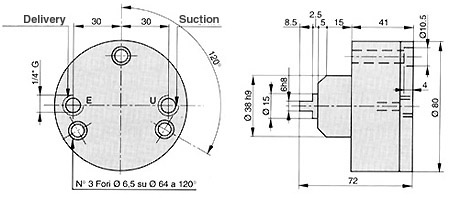

Suction and delivery ports are fixed and shown on the drawing.

Code 80.272 - PC5R

Code 80.273 - PC5ER

Code 80.274 - PC5RP
