GEAR PUMPS FOR OILING

GEAR PUMPS FOR OILING

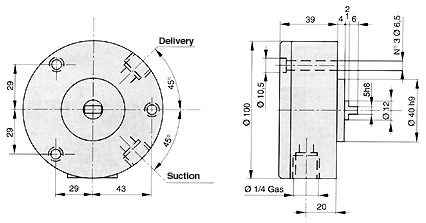

Code 80.280 PR2CL reversible Characteristics : Shaft and vanes in threated and grinded steel Pump body in cast iron Max working pressure: 3 bar Max RPM: continuous 1000 intermittent 1400 Min RPM: 500 Theoretical displacement: 1,5 cm3/rev
For suction lines higher than 10cm mounting a check valve is recommended. In these pumps suction and delivery ports are defined and cannot be changed. The shaft can rotate in both directions.

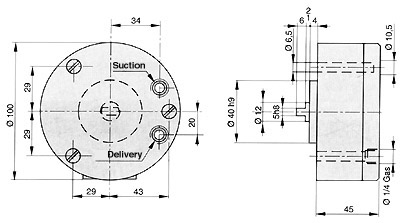

Code 80.281 PR2CL reversible Characteristics : Shaft and vanes in threated and grinded steel Pump body in cast iron Max working pressure: 3 bar Max RPM: continuous 1000 intermittent 1400 Min RPM: 500 Theoretical displacement: 1,5 cm3/rev
For suction lines higher than 10cm mounting a check valve is recommended. In these pumps suction and delivery ports are defined and cannot be changed. The shaft can rotate in both directions.

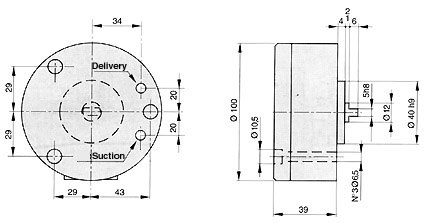

Code 80.282 PR2CL reversible Characteristics : Shaft and vanes in threated and grinded steel Pump body in cast iron Max working pressure: 3 bar Max RPM: continuous 1000 intermittent 1400 Min RPM: 500 Theoretical displacement: 1,5 cm3/rev
For suction lines higher than 10cm mounting a check valve is recommended. In these pumps suction and delivery ports are defined and cannot be changed. The shaft can rotate in both directions.
