LOW PRESSURE MOTOR PUMP
Characterics :
Gear pump with cast iron body
Shaft and gears threated and grinded
Max. working pressure : 3 bar
Three-phase electric motor
Supply 220-380V / 50 Hz - 4 poles
Unified casing B3/B14 closed self-ventilated
HP O,18
Direct coupling motor-pump with articulated joint
To achieve a good performance and a long life, a suction filter is recommended

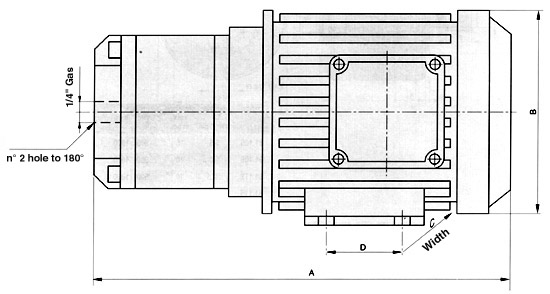

code
pump delivery L/1°
electric motor
4 poles HP
press
max
bar
A
mm
B
mm
C=front
_
side
D=front
_
side
CxD
fixing holes
Ø
weight
kg
Ø
gas
90.010
1,0
0,18
3
215
100
90/70
6,5
2
1/4"
90.020
2,0
0,18
3
225
100
90/70
6,5
2
1/4"
