MEDIUM PRESSURE MOTOR-PUMP
|
Characteristics:
- Gear pump for pressure up to 100 bar
- Inlet and outlet fittings can rotate up to 360 ç
- Three-phase electric motor
- Supply 220-380 V / 50 Hz 4 poles
- Unified casing B3/B14 closed, self-ventilated
- On request different voltage supplies and explosion-proof (eex) executions
are available
- Motor-pump coupling in light alloy with elastic joint
- Working pressure is depending on applied power
These motor-pumps are suitable for lubricant fluids. For a good performance
and a long life, They must be used toghether with a suctio filter. External
dimensions and weight are approximate.
On request flows up to 200 l/min
|
|
code |
pump delivery L/1 |
electric motor
4 poles HP |
press
bar |

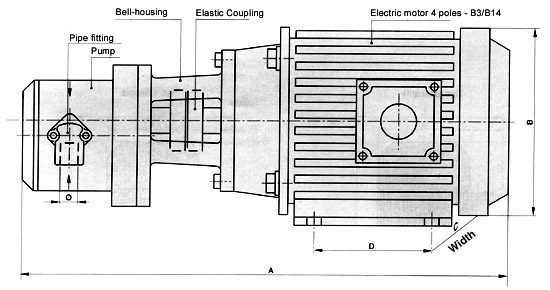

A
m/m |
B
m/m |
D=side
C=front
CxD |
fixing holes
Ø |
weigth
kg |
thrested
pipe fitting 90° |
Ø
inlet |
Ø
outlet |
| MP2/025 |
2 |
0,25 |
18 |
315 |
130 |
100/80 |
7 |
8 |
3/8"gas |
3/8"gas |
| MP2/05 |
2 |
0,5 |
55 |
350 |
145 |
112/90 |
7 |
9 |
| MP2/1 |
2 |
1 |
100 |
400 |
160 |
125/100 |
9 |
12 |
| MP4/025 |
4 |
0,25 |
13 |
320 |
130 |
100/80 |
7 |
8 |
| MP4/05 |
4 |
0,5 |
30 |
360 |
145 |
112/90 |
7 |
9 |
| MP4/1 |
4 |
1 |
50 |
400 |
160 |
125/100 |
9 |
12 |
| MP6/025 |
6 |
0,25 |
6 |
320 |
130 |
100/80 |
7 |
8 |
| MP6/05 |
6 |
0,5 |
20 |
360 |
145 |
112/90 |
7 |
9 |
| MP6/1 |
6 |
1 |
35 |
400 |
160 |
125/100 |
9 |
12 |
| MP8/05 |
8 |
0,5 |
16 |
380 |
145 |
112/90 |
7 |
11 |
| MP8/1 |
8 |
1 |
30 |
400 |
160 |
125/100 |
9 |
14 |
| MP10/05 |
10 |
0,5 |
15 |
380 |
145 |
112/90 |
7 |
11 |
| MP10/1 |
10 |
1 |
28 |
400 |
160 |
125/100 |
9 |
14 |
|
|
code |
pump delivery L/1 |
electric motor
4 poles
HP |
press
bar |
A
m/m |
B
m/m |
D=side
C=front
CxD |
fixing holes
Ø |
weigth
kg |
thrested
pipe fitting 90° |
Ø
inlet |
Ø
outlet |
| MP16/05 |
16 |
0,5 |
8 |
390 |
145 |
112/90 |
7 |
11 |
3/4"gas |
1/2"gas |
| MP16/1 |
16 |
1 |
15 |
410 |
160 |
125/100 |
9 |
14 |
| MP16/2 |
16 |
2 |
28 |
450 |
185 |
140/125 |
9 |
20 |
| MP16/3 |
16 |
3 |
42 |
480 |
200 |
160/140 |
12 |
25 |
| MP22/1 |
22 |
1 |
12 |
410 |
160 |
125/100 |
9 |
14 |
| MP22/2 |
22 |
2 |
23 |
450 |
185 |
140/125 |
9 |
20 |
| MP22/3 |
22 |
3 |
34 |
480 |
200 |
160/140 |
12 |
25 |
| MP28/1 |
28 |
1 |
10 |
420 |
160 |
125/100 |
9 |
14 |
| MP28/2 |
28 |
2 |
18 |
460 |
185 |
140/125 |
9 |
20 |
| MP28/3 |
28 |
3 |
28 |
490 |
200 |
160/140 |
12 |
25 |
| MP33/1 |
33 |
1 |
9 |
450 |
160 |
125/100 |
9 |
19 |
| MP33/2 |
33 |
2 |
16 |
470 |
185 |
140/125 |
9 |
20 |
| MP33/3 |
33 |
3 |
25 |
490 |
200 |
160/140 |
12 |
25 |
|
|
code |
pump delivery L/1 |
electric motor
4 poles
HP |
press
bar |
A
m/m |
B
m/m |
D=side
C=front
CxD |
fixing holes
Ø |
weigth
kg |
thrested
pipe fitting 90° |
| Ø
inlet |
Ø
outlet |
| MP40/2 |
40 |
2 |
14 |
470 |
185 |
140/125 |
9 |
26 |
1"gas |
3/4"gas |
| MP40/3 |
40 |
3 |
20 |
490 |
200 |
160/140 |
12 |
30 |
| MP40/4 |
40 |
4 |
26 |
490 |
200 |
160/140 |
12 |
34 |
| MP48/2 |
48 |
2 |
14 |
470 |
185 |
140/125 |
9 |
26 |
| MP48/3 |
48 |
3 |
20 |
490 |
200 |
160/140 |
12 |
30 |
| MP48/4 |
48 |
4 |
26 |
490 |
200 |
160/140 |
12 |
34 |
| MP55/2 |
55 |
2 |
12 |
500 |
185 |
140/125 |
9 |
26 |
| MP55/3 |
55 |
3 |
18 |
500 |
200 |
160/140 |
12 |
30 |
| MP55/4 |
55 |
4 |
24 |
500 |
200 |
160/140 |
12 |
34 |
| MP67/2 |
67 |
2 |
10 |
500 |
185 |
140/125 |
9 |
26 |
| MP67/3 |
67 |
3 |
15 |
500 |
200 |
160/0140 |
12 |
30 |
| MP67/4 |
67 |
4 |
20 |
500 |
200 |
160/140 |
12 |
34 |
|
|
